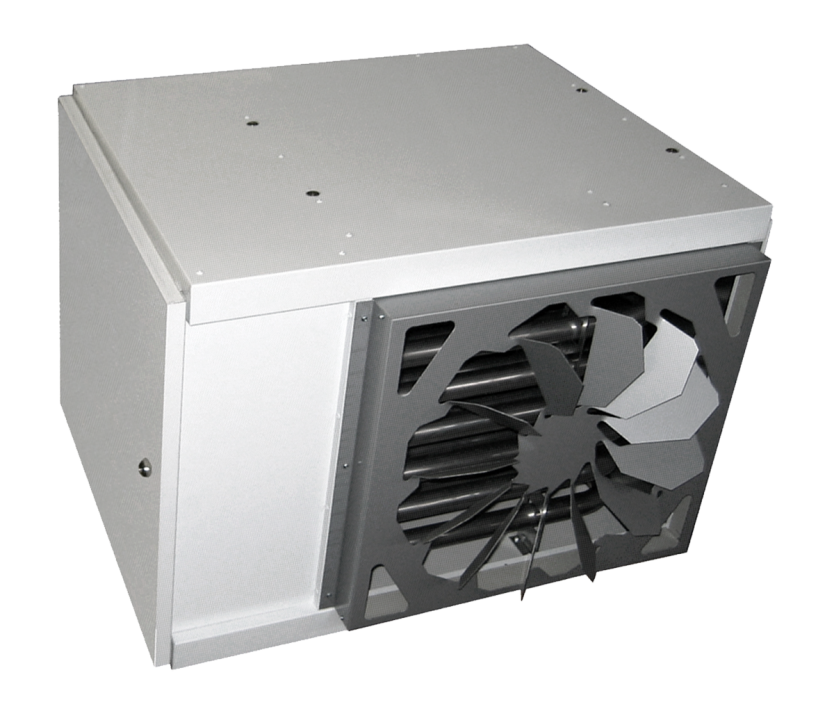

MV Eco vertical hot air gas unit heater

Heating solution for all types of building:

Technical details

Description Parameters Data sheets References Request a quote

4 models from 35 to 80 kW
Compact and aesthetic heating solution by direct blowing of turbulent air jet
Installation under roof (height from 4 to 12 metres)
Power variation according to air return temperature by 2 speed modulating gas solenoid (70% to 100%)
Respects the environment with its low NOx level
Quickly installed with pilot wire concept for control
Control by pilot wire: automatic lighting, flame monitoring, temperature regulation
Reliable, robust solution with 2 mm thick 4 path weldless tubular exchanger in aluminized steel
Casing in sheet steel with oven-baked epoxy paint RAL 9010
Low sound level with 900 rpm motorized fan mounted on anti-vibration pads
Low NOx level
For high destratification requirements

Congested building walls | installation under roof

TYPE			MV35 Eco	MV50 Eco	MV60 Eco	MV80 Eco
Rated heat input		kW	34	50	60	80
Rated heating capacity		kW	31,5	46,3	55,5	74
Efficiency		%	92,5	92,5	92,5	92,5
Minimum rated heating capacity		kW	25,2	37	44,4	59,2
Efficiency (min. rated heating capacity)		%	92	92	92	92
Speed rotation		tr/mn	1050	1350	910	900
Air fow rate at 50 °C		m³/h	3250	5300	6500	8800
Air DeltaT°		°C	26	25	25	25
Gas flow rate at 15°C	G20	20 mbar	3.60 m³/h	5.29 m³/h	6.35 m³/h	8.47 m3/h
	G25	25 mbar	4.00 m³/h	5.88 m³/h	7.06 m³/h	9.41 m³/h
	G31	37 mbar	2.66 kg/h	3.91 kg/h	4.69 kg/h	6.25 kg/h

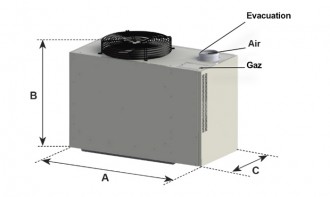

Exhaust diam.		mm	80/125	130	130	130
Air inlet diam.		mm	80/125	130	130	130
Voltage			230 Volts / 50 Hz - IP42
Electrical power		VA	320	500	580	750
Mass		kg	92	125	152	194
Sound pressure (MH Eco)-5m in free field		dBA	46	56	54	53

		MV35 Eco	MV50 Eco	MV60 Eco	MV80 Eco

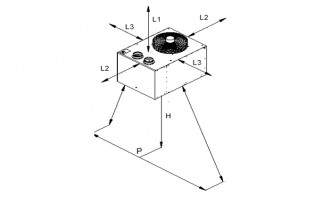

Reservation L1 (min)	m	0.45	0.45	0.50	0.60
Reservation L2 (min)	m	1	1	1	1
Reservation L3 (min)	m	1	1	1	1
Recommended minimum height (H)	m	4	5	6	6
Recommended maximum height (H)	m	6	8	10	10
Air jet range (P)	m	P = 23 - H	P = 28 - H	P = 28 - H	P = 28 - H
