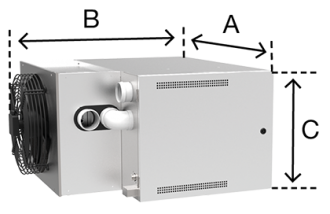

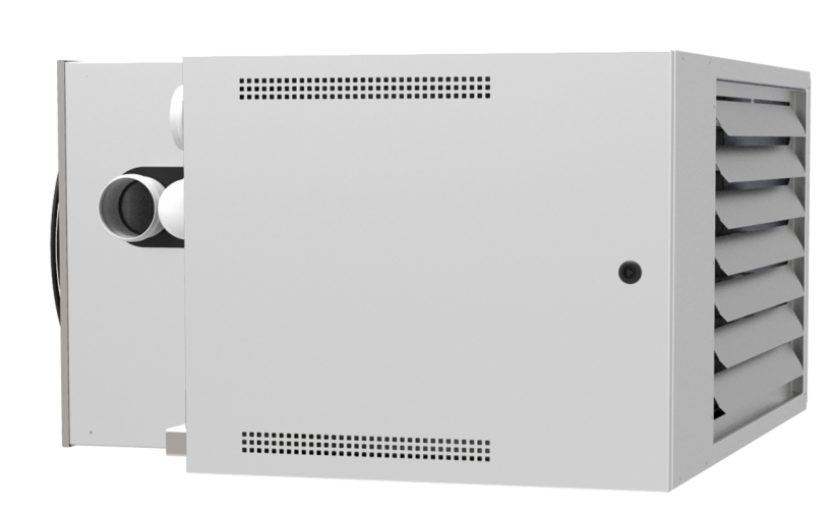

MHX Condensing gas unit heater

Solution particularly suited to heating buildings:

  • of low height
  • industrial
  • shops
  • tertiary
  • well insulated
  • new or for renovation

Advantages

  • Gas savings between 15% and 45%
  • RECORD combustion efficiency of 107%
  • Continuous modulation from 30% to 100%
  • Ultra-fast warm-up time
  • Reduction in stratification
  • No flue calculations required
  • Absolute safety (no flames or combustion gases in the air flow)
  • Blowing temperature adapted to the requirements of the building
  • Corrosion-resistant components
  • Shut-down on full power tolerated by damp combustion chamber and hot water heat exchanger
  • Size identical to MH hot air gas unit heaters
  • Flue connection from above: ideal solution when replacing appliances

Technical details

Description

Complete pre-adjusted mini-boiler
Stainless heating body with cold door (guaranteed lifetime)
Pre-mixing modulating burner (power modulation from 30% to 100%)
Automatic air / flue gas adaptation
Permanent optimisation of power level with ECO-TEC electronic card
Aerodynamically profiled crescent-shaped fan blades
Single deflection blower grille (RAL 9006)
Case in sheet steel with oven-baked epoxy paint RAL 9003
Flue pipes in high density polypropylene (maximum flue gas temperature 90°C)
Condensate removal from the rear (1 single siphon diameter 32)
Regulation settings: Weekly timer - 2 levels of temperature setting (day and night) - Function select (Off / Automatic running / Ventilation / Forced) - burner reset


APPLICATIONS

Industrial buildings | Garden centres | Greenhouses | Sports hall | Car garages | Production shop floors | Car dealers | Storage warehouses | Sales outlets

Parameters

TECHNICAL SPECIFICATIONS

Dimensions

References

  • Boa Flex - (France)
  • Casino - (France)
  • Circuit de Charade - (France)
  • Jardinerie Leclerc - (France)
  • Kent International - (France)
  • Metro - (France)
