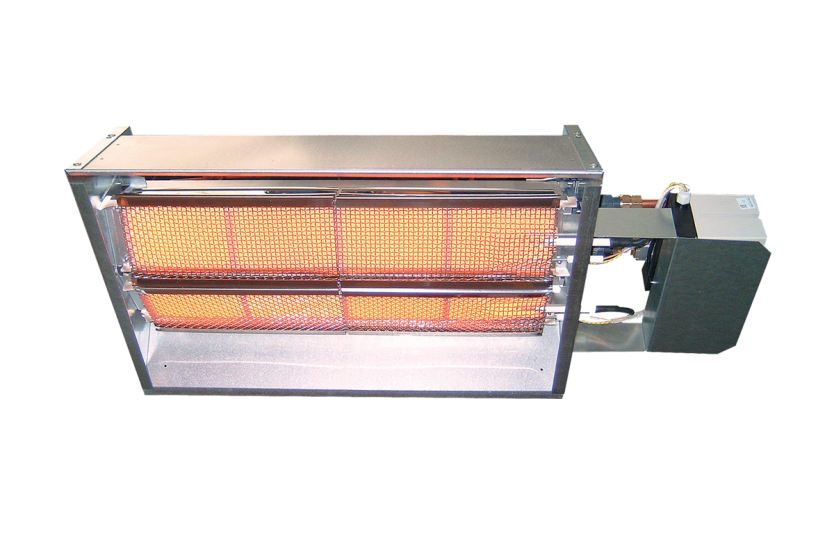

SRII radiant plaque heater

Solution particularly suited to heating buildings:

high
poorly insulated
with high air renewal rate

Advantages

Fast warm up
Simple maintenance
Economical and comfortable solution
Suitable for buildings equipped with overhead cranes
Simple to use
Anti-vibration springs
Simple design
Long life
Energy savings of 25% compared with traditional systems
Reliable heating
Overall, area or workstation heating

Technical details

Description Parameters Data sheets References Request a quote

Description

8 models from 6.2 to 25.7 kW
Available for natural gas or propane gas G31
Burner composed of:

Distributor to homogenise the pre-heatedair-gas mixture over the entire length of the burner
High temperature honeycombed ceramic plates, patented by Solaronics
Refractory stainless steel screen with high emission powerIonisation electrode flame control

Remote electrical ignition system by refractory steel electrode
Aluminised steel side reflectors
Safety solenoid valve for each burner

APPLICATIONS

Industrial buildings | Production shop floors | Car garages | Sports/leisure centres | Exhibition halls and arenas | Storage depots

Parameters

TECHNICAL CHARACTERISTICS

		1 speed					2 speeds
		SRII 21	SRII 31	SRII 41	SRII 61	SRII 81	SRII 42	SRII 62	SRII 82
Heating value LHV	kW	6.20	9.75	12.80	19.50	25.70	12.40	19.50	25.70
G20 gas flow rate	m³/h	0.66	1.03	1.36	2.06	2.72	1.31	2.06	2.72
G25 gas flow rate	m³/h	0.76	1.20	1.57	2.40	3.16	1.52	2.40	3.16
G31 gas flow rate	kg/h	0.48	0.76	1.00	1.52	2.00	0.97	1.52	2.00
Electrical supply		1 x 230 V + N - 50 Hz
Electrical power	VA	15					30

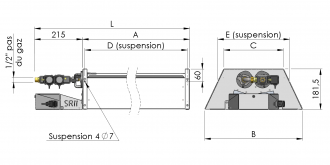

Dimensions

		SRII 21	SRII 31	SRII 41	SRII 61	SRII 81	SRII 42	SRII 62	SRII 82
Total length (L)	mm	813	1 082	1 349	1 082	1 349	813	1 082	1 349
Burner body length (A)	mm	598	867	1 134	867	1 134	598	867	1 134
Width below (B)	mm	315	315	315	435	435	435	435	435
Width above (C)	mm	150	150	150	270	270	270	270	270
Between suspension centres (D)	mm	578	847	1 114	847	1 114	578	847	1 114
Between suspension centres (E)	mm	200	200	200	320	320	320	320	320
Mass	kg	11	13	15	18,5	22	15	18,5	22

RECOMMENDED FIXING HEIGHT

		SRII 21	SRII 31	SRII 41	SRII 61	SRII 81	SRII 42	SRII 62	SRII 82
Recommended minimum height	m	4	4	5	6	7	5	6	7
Recommended maximum height	m	5	5	6	7	9	6	7	9

The power, number, mounting height and position of SRII radiant plaque heaters must be suitably adapted to the requirements of the installation.
