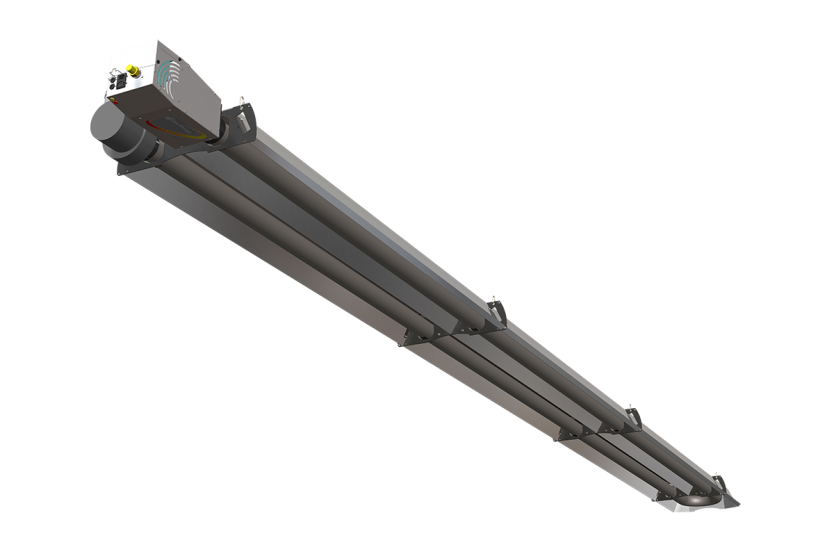

SolarHP High Performance gas fired radiant tube

Solution particularly suited to heating buildings:

industrial
tertiary
of large volume
poorly insulated
with high air renewal rate

Advantages

New performance standard (68% radiant efficiency)
Complies with the Eco Design directive (Energy Related Products)
Aesthetic Silent running
Easy to assemble / fit
Heat input reduced by 23%
Lower temperature in the chimney
New increased safety flame monitoring box
Gas consumption savings compared with a standard appliance, greater than 15% (up to 30% on renovation)

Technical details

Description Parameters Data sheets References Request a quote

Description

7 “U” tubes models from 10.5 to 48 kW, 1 or 2 speeds
3 “linear” tube models from 20 to 48 kW, 1 or 2 speeds
Available for natural gas or propane gas G31
Double gas solenoid
Annealed high emissivity aluminised steel emission tubes
Cast iron burner supports and extractor supports
End caps
High reflectivity aluminised steel reflectors
Optimised reflector geometry
Options available: 2 speeds, run return

APPLICATIONS

Parameters

TECHNICAL CHARACTERISTICS

		SolarHP 12	SolarHP 17	SolarHP 23	SolarHP 23L	SolarHP 32	SolarHP 36	SolarHP 36L	SolarHP 43	SolarHP 50	SolarHP 50L
Heat input 2nd speed	kW	10.5	15	20	20	27	32	32	40	48	48
Heat input 1st speed*	kW	8	11.5	15.5	15.5	21.5	25.5	25.5	32	37	37
Combustion efficiency	%	93	93	91	90	92	91	90	92	90	91
Radiant efficiency	%	57	66	65	65	68	67	65	65	67	65
G20 gas flow rate	m³/h	1.11	1.59	2.12	2.12	2.86	3.39	3.39	4.23	5.08	5.08
G25 gas flow rate	m³/h	1.29	1.85	2.46	2.46	3.32	3.94	3.94	4.92	5.91	5.91
G31 gas flow rate	m³/h	0.82	1.17	1.56	1.56	2.10	2.50	2.50	3.10	3.80	3.80
Gas connection		1/2” - Gas pitch male cylindrical
Flue gas evacuation/air suction	mm	80				100
Electrical supply		1 x 230 V + N - 50 Hz
Electrical consumption	A	0.25	0.25	0.25	0.25	0.5	0.5	0.5	1	1	1

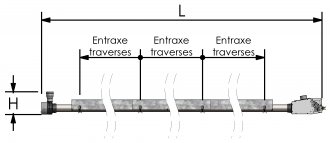

Dimensions

		SolarHP 12	SolarHP 17	SolarHP 23	SolarHP 23L	SolarHP 32	SolarHP 36	SolarHP 36L	SolarHP 43	SolarHP 50	SolarHP 50L
Length	mm	3 209	5 409	5 409	9 557	7 609	7 609	13 999	9 398	9 398	18 272
Width	mm	604	604	604	438	604	604	438	650	650	438
Height	mm	278	278	278	276	284	284	284	366	366	366
Suspension centre distance	mm	470	470	470	416	470	470	416	622	622	416
Cross-piece centre distance	mm	2 200	2 200 (x2)		2 800 (x3)	2 200 (x3)		2 400 (x5)	2 175 + 2 220 (x3)		2 400 (x7)
Number of suspension points		4	6	6	8	8	8	12	10	10	16
Mass	kg	45	70	70	65	100	100	95	140	140	140
