MRX Condensing gas air curtain

Comfort and cost-effective ”Premium” solution nearby doors for industrial buildings:

  • Vertical mounting
  • Hot air jet (less than 40 seconds)
  • Recommended installation height: 3 to 6 metres

Advantages

  • Laminar air jet (homogeneous blowing)
  • Gas savings between 15% and 45%
  • Record combustion efficiency of 107%
  • Continuous modulation from 30% to 100%
  • Ultra-fast warm-up time
  • Absolute safety (no flames or combustion gases in the air flow)
  • Corrosion-resistant components
  • No risk of polluting the reheated air because of separation of the combustion part/air circuit
  • Shut-down on full power tolerated by damp combustion chamber and hot water heat exchanger

Technical details

Description

Complete pre-adjusted mini-boiler
Stainless heating body with cold door (guaranteed lifetime)
Pre-mixing modulating burner (power modulation from 30% to 100%)
Automatic air / flue gas adaptation (no flue calculations required)
Copper tube heat exchanger of high thermal conductivity - 330 W/m²/°C
Permanent optimisation of power level with ECO-TEC electronic card
Aerodynamically profiled crescent-shaped fan blades
Single deflection blower grille (RAL 9006)
Laminar air jet diffuser (fitted with an orientable vent)
Flue pipes in high density polypropylene (maximum flue gas temperature 90°C)
Condensate removal from the rear (1 single siphon diameter 32)
Regulation settings:

  • Weekly timer
  • 2 levels of temperature setting (day and night)
  • Function selection (Off / Automatic running / Ventilation / Forced)
  • Burner reset
  • Possibility of connection to door opening detection

Parameters

TECHNICAL SPECIFICATIONS

    MRX50
Heating value LHV kW 11 – 45
Rated power kW 11.9 – 43.7
Efficiency at full load % 98
Efficiency at minimum load % 107
Air flow rate at 15°C m3/h 6 000
ΔT air ranges °C 8 – 24
NOx: Class 5 m3/h 4.77
G20 gas flow rate m3/h 5.23
G25 gas flow rate kg/h 3.51
G31 propane flow rate m3/h 100
Condensate flow rate litre/h 2.5
Flue gas temperature °C 50 – 100
Electrical supply 1 x 230 V + N - 50 Hz
Range of operating temperature -15°C / +40°C
Condensate connection diameter W 420
Motor speed tr/min 1 400
Electrical power W 640

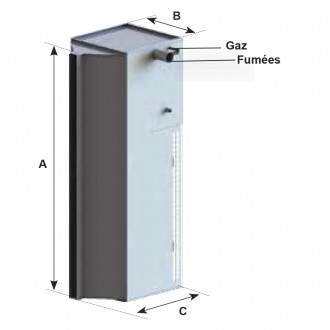

Dimensions

    MRX50
Width A mm 2 080
Height B mm 650
Depth C mm 866
Flue diameter mm 80
Condensate connection diameter mm 32
Gas connection 1/2" gas pitch
Volume of circuit (water with glycol - 15°C) litre 12
Mass kg 120
